Wifi Configuration

Below are the instructions for a customer or for an electrician to follow in order to connect there charger to a wifi hotspot.

Please refer below:

1. Find chargers’ local hotspot using laptop or smart device.
- Search for the chargers’ hotspot like you would for any Wi-Fi Network.
- This hotspot will have the following SSID: IOC – 2.4Gz - ****** (Can also find SSID on the side of the charger with the sticker)
- The Password for this hotspot is: IOC12345

2. Navigate to the web-interface of the Ocular Charger
- Open a web browser (Chrome, Safari, Edge ect.) and search: 192.168.10.1 or 192.168.10.1:8900
- The Web Interface will ask for;


Username: useradmin
Password: 12345678 or Evcharging123

- After entering the Username and Password the Ocular Web-Interface will load.

3. (OPTIONAL) Setup the Wi-Fi configuration (not needed if ethernet/LAN cable is being used)
- Navigate to the Network tab
- Click the “Scan” Button to start scanning for available Wi-Fi network.
- Use the drop-down list to select the required network, enter the password.
- Click Submit then Reboot (top right-hand corner) to apply changes
- Then will need to log back into the web-interface to continue configuration

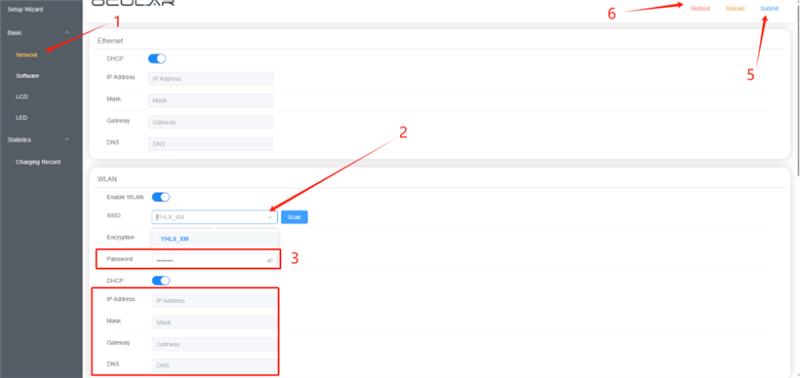

Photo attached for your reference.

NOTE: It is recommended to connect on a 2.4GHz WIFI Bandwidth WIFI. Also, once you were able to scan your WIFI and successfully inputted your password, you should see the IP address, mask, gateway, and DNS of your WIFI below to confirm it was successfully connected.


I hope this helps. Thank You!
